ID # 40342522

Echo CS-2511P

Videos
Call for Price
Overview

Power is measured in productivity, not pounds. The rear-handle CS-2511P features an industry-best power-to-weight ratio, helping to ensure a long day of work isn’t more exhausting than it needs to be.

TOP FEATURES

  • 25 cc professional-grade, 2-stroke engine
  • Spring-assist starter



Specifications
Model
CS-2511P
Category Name
Power Equipment
Year
2026
Manufacturer
Echo
Handle
Plastic
Bar Type
Double Guard 91
Warranty
5 year consumer / 1 year commercial
Oiling System
Automatic
Sprocket Type
Spur
Sprocket Cover
Plastic
Ignition System
Digital
Starting System
Spring-Assist
Oil Capacity (ml)
139 (4.7 fl. oz.)
Dry Weight (lbs) 1
5.7 (2.6 kg)
Fuel Capacity (ml)
189 (6.4 fl. oz.)
Engine Displacement (cc)
25
Carburetor (w/Purge Pump)
Diaphragm horizontal
Available Bar Lengths (in)
12, 14
Vibration Reduction System
Standard
Engine Displacement (cu In)
1.53
features

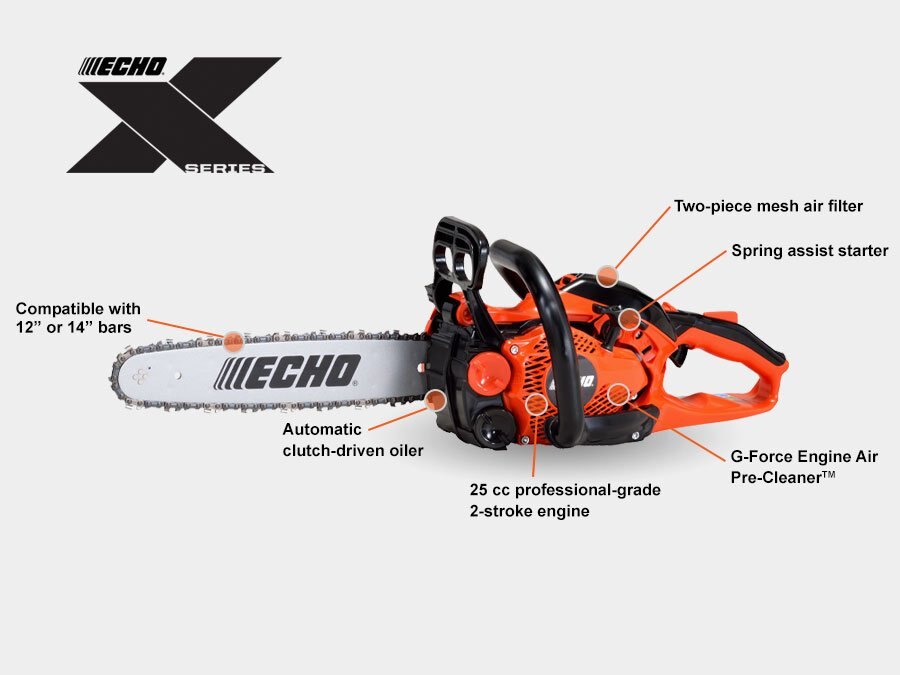

LIGHTEST GAS CHAINSAW IN NORTH AMERICA

25.0 cc professional-grade, 2-stroke engine

For outstanding performance and durability

G-Force Engine Air Pre-Cleaner™

Extends air filter life and reduces maintenance intervals

Palm rest

For a secure hold and more saw control

Spring-assist starter

Reduces starting effort

Side-access chain tensioner

For easy chain adjustments

Replaceable metal bumper spike

Improves user control and leverage

Top-mounted automatic, adjustable clutch-driven bar oiler

Operates only when the chain is moving to reduce oil consumption

Rear-mounted, two-piece mesh air filter

Provides for easy access and easy cleaning

Captive bar nuts

Prevent loss of hardware



literature
Name Link
CS-2511P Parts Catalog                                     Download
CS-2511P Parts Catalog                                    Download
CS-2511P Operator's Manual                              Download
