ID # 40342531

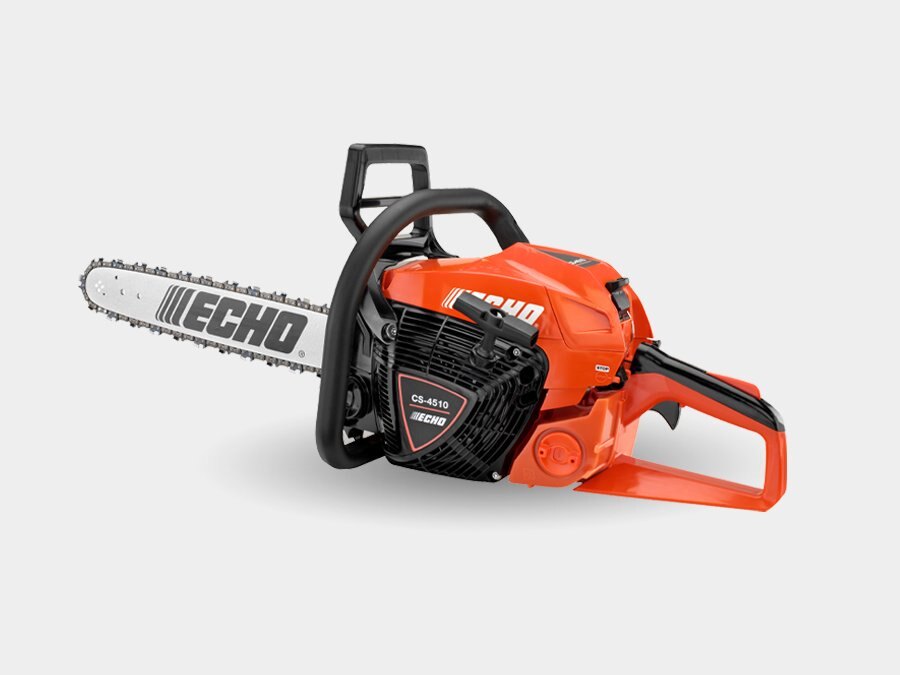

Echo CS-4510

  • Echo CS 4510
  • Echo CS 4510
  • Video Button Maxresdefault
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Contact Us   Get Directions  Print
Overview

A simply reliable cutting machine. Whether the work calls for seemingly endless storm cleanup or bucking loads of firewood, the CS-4510 delivers power and performance for the long haul.

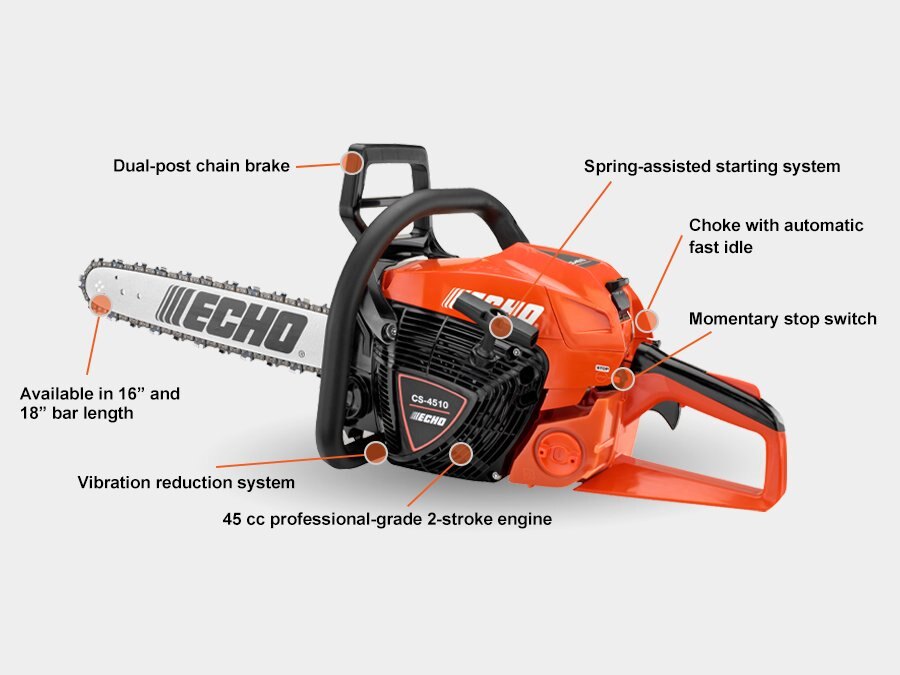

TOP FEATURES

  • 45.0 cc professional-grade, 2-stroke engine
  • Spring-assist starter reduces starting effort
  • Heavy-duty air filter with tool-less access provides superior air filtration



Specifications
Model
CS-4510
Category Name
Power Equipment
Year
2026
Manufacturer
Echo
Handle
Rear
Bar Type
Laminated
Warranty
5 year consumer / 1 year commercial
Oiling System
Automatic/adjustable
Sprocket Type
Spur
Sprocket Cover
Plastic
Ignition System
Digital
Starting System
Spring-Assist
Oil Capacity (ml)
328 (11.1 fl. oz.)
Dry Weight (lbs) 1
11.1 (5 kg)
Fuel Capacity (ml)
479 (16.2 fl. oz.)
Engine Displacement (cc)
45
Available Bar Lengths (in)
16, 18
Carburetor (w/Purge Pump)
Butterfly-Valve Diaphragm
Vibration Reduction System
Standard
Engine Displacement (cu In)
2.75
features

THE OWNER OF A HARD-EARNED REPUTATION

Three-point spring vibration-reduction system

Delivers operator comfort

Automatic, adjustable oiler

Matches the cutting conditions for reduced oil consumption

Choke with automatic fast idle

Provides for easy starting

Dual-post chain brake

Increases durability

Momentary stop switch

Automatically returns to "ON" position

Purge bulb

Delivers fresh fuel to carburetor for easier starts

Side-access chain tensioner

For easy chain adjustments

Spring-assist starter

Reduces starting effort

Available in 16 in. and 18 in. bar lengths with 20BPX chain

Low-vibration cutters make for smoother cuts



literature
Name Link
CS-4510 Operator's Manual                                Download
CS-4510 Parts Catalog                                       Download
CS-4510 Operator's Manual                                 Download
