Echo CS-501P

  • Echo CS 501P
  • Video Button Hqdefault
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Contact Us   Get Directions  Print
Overview

Less workout in your workday. Made with pros in mind, the CS-501P is the lightest 50 cc chainsaw in North America, built to deliver confident cuts without added effort.

TOP FEATURES

  • Aluminum handle with rubber grip
  • Lightest chainsaw in its class
  • 50.2 cc professional-grade, 2-stroke engine



Specifications
Model
CS-501P
Category Name
Power Equipment
Year
2026
Manufacturer
Echo
Handle
Aluminum
Warranty
5 year consumer / 1 year commercial
Bar Type
Pro-Lite®
Oiling System
Automatic/Adjustable (Clutch-Driven)
Sprocket Cover
Plastic
Ignition System
Digital
Sprocket Type
Rim
Starting System
Standard
Oil Capacity (ml)
281 (9.5 fl. oz.)
Fuel Capacity (ml)
16.6
Dry Weight (lbs) 1
10.6 (4.8 kg)
Engine Displacement (cc)
50.2
Available Bar Lengths (in)
16, 18, 20
Carburetor (w/Purge Pump)
Butterfly-Valve Diaphragm
Vibration Reduction System
Standard
Engine Displacement (cu In)
3.06
features

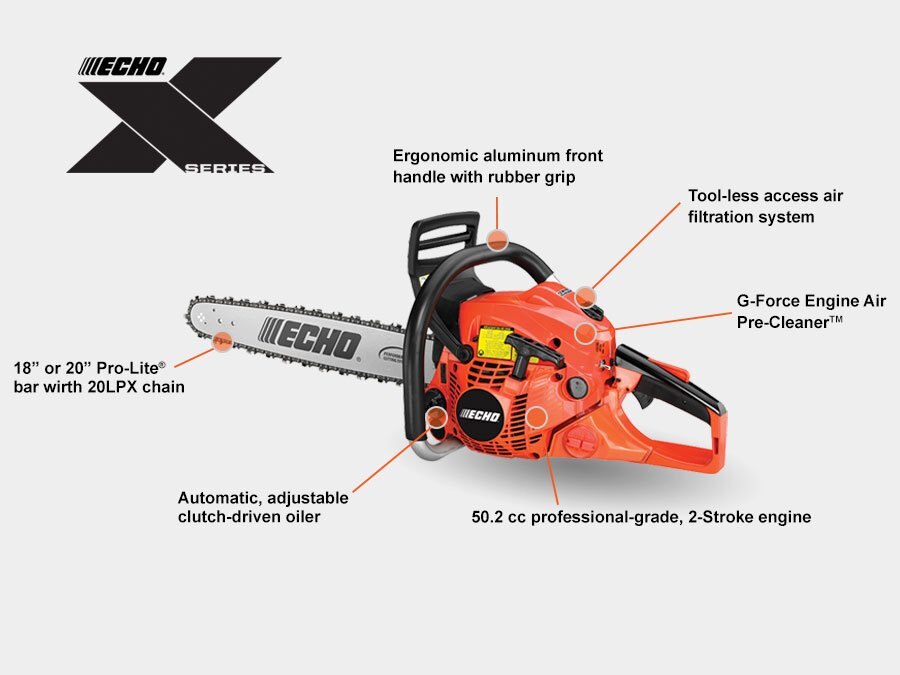

MORE POWER WITHOUT MORE WEIGHT

50.2 cc professional-grade, 2-stroke engine

For outstanding performance and durability

Professional-grade bar and chain

Performance Cutting System(TM) maximizes cutting ability and durability

G-Force Engine Air Pre-Cleaner™

Extends air filter life and reduces maintenance intervals

Captive bar nuts

Prevent loss of hardware

Automatic, adjustable clutch-driven oiler

Operates only when the chain is moving to reduce oil consumption

Top-mounted, tool-less access, two piece air filter

Provides for easy access and easy cleaning

Ergonomic aluminum front handle

Improves comfort and maneuverability

Decompression valve

Reduces rope-pulling effort for easier starts



literature
Name Link
CS-501P Operator's Manual                                Download
CS-501P Parts Catalog                                       Download
