ID # 40342535

Echo CS-620P

Videos
Call for Price
Overview

Power for professionals. The rear-handle CS-620P is a best-in-class midrange saw, featuring a Performance Cutting System™ and loaded with user-friendly innovations to keep the sawdust flying.

TOP FEATURES

  • 59.8 cc professional-grade, 2-stroke engine
  • Professional-grade magnesium sprocket cover and crankcase
  • G-Force Engine Pre-Cleaner™ and heavy-duty air filter provide superior air filtration



Specifications
Model
CS-620P
Category Name
Power Equipment
Year
2026
Manufacturer
Echo
Handle
Aluminum w/ Rubber
Bar Type
PowerMatch
Warranty
5 year consumer / 1 year commercial
Oiling System
Automatic/Adjustable (Clutch-Driven)
Sprocket Type
Rim
Sprocket Cover
Magnesium
Ignition System
Digital
Starting System
Standard
Oil Capacity (ml)
302 (10.2 fl. oz)
Dry Weight (lbs) 1
13.7 (6.2 kg)
Fuel Capacity (ml)
645 (21.8 fl. oz.)
Engine Displacement (cc)
59.8
Carburetor (w/Purge Pump)
Butterfly-Valve Diaphragm
Available Bar Lengths (in)
16,18, 20, 24, 27
Vibration Reduction System
Standard
Engine Displacement (cu In)
3.64
features

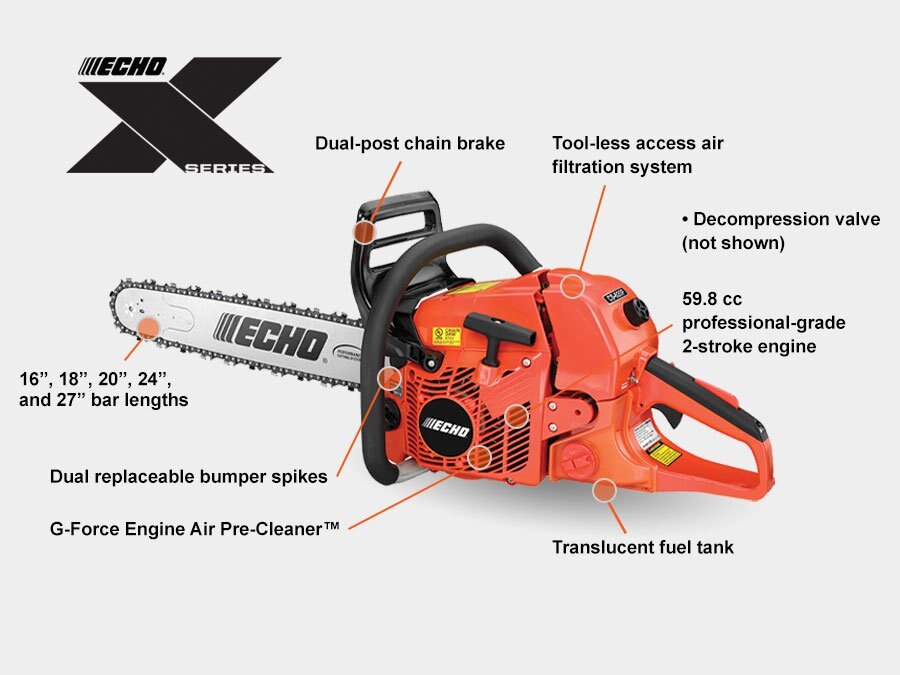

WORKDAY WORKHORSE

Top-mounted, tool-less access, two piece air filter

Provides for easy access and easy cleaning

Automatic, adjustable clutch-driven oiler

Operates only when the chain is moving to reduce oil consumption

Translucent fuel tank

For quick fuel level checks

Decompression valve

Reduces rope-pulling effort for easier starts

Dual bumper spikes

Improves user control and leverage

Available in 16, 18, 20, 24 and 27 in. bar lengths

For a wide variety of cutting applications

G-Force Engine Air Pre-Cleaner™

Extends air filter life and reduces maintenance intervals

Rear-mounted, heavy-duty two-piece air filter

Provides for easy access and easy cleaning



literature
Name Link
CS-620P Operator's Manual                                Download
CS-620P Parts Catalog                                       Download
CS-620P Parts Catalog                                       Download
