Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

  • Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS
  • Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS
  • Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS
  • Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS
Call for Price
 Get a Quote  Get Financed  Contact Us   Get Directions  Print
Overview

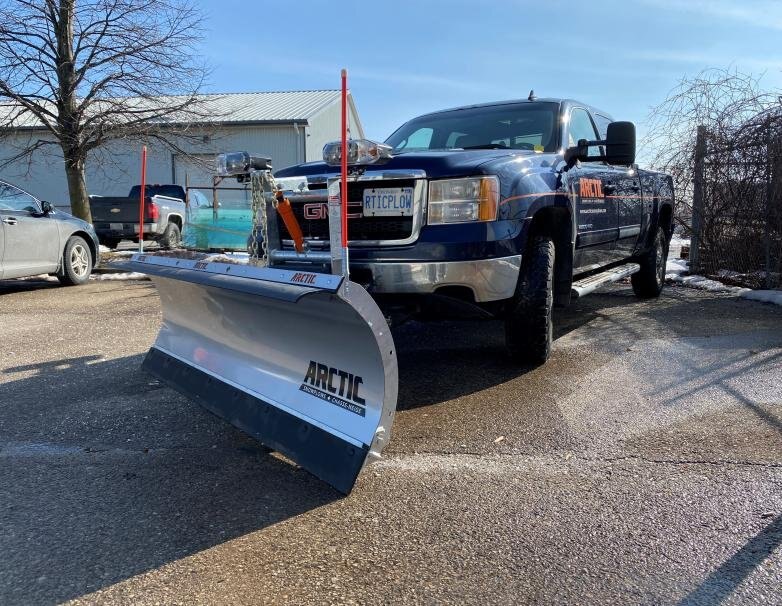

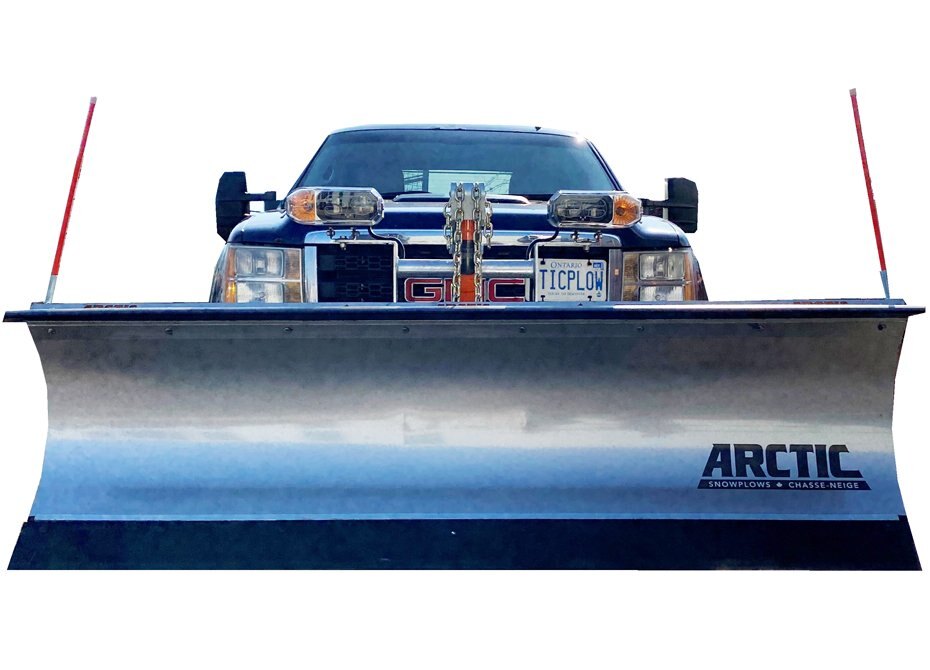

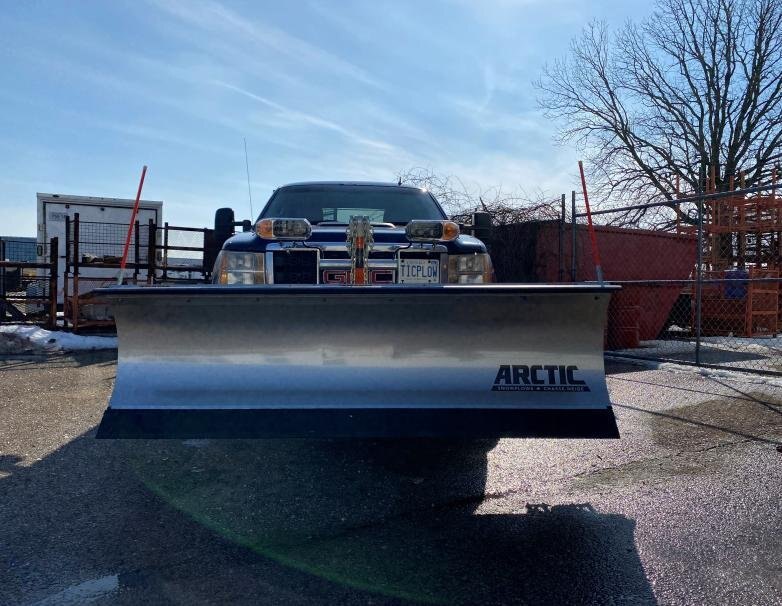

Built for full-size vehicles and larger, the Arctic Heavy Duty Trip Edge Stainless Steel offers the additional security of trip-edge technology. Featuring a steel cutting edge that flips back and under - or "trips" - when it encounters a fixed object with sufficient force, the Arctic Heavy Duty Trip Edge Stainless Steel provides extra peace of mind in extra-rugged terrain.

Specifications
Model
Heavy Duty Trip Edge Stainless Steel Blade
Category Name
Snow Equipment
Year
2025
Manufacturer
Arctic
Blade Skin
12 Ga SS
Blade Height
29"
Blade Length
96"
Cutting Edge
1/2" x 6" Steel
Trip Springs
4
Lift Cylinder
2" x 6"
Mounting Type
Quik*Link™ IV - Detachable
Reinforced Ribs
6
Angling Cylinder
1 1/2" x 10"
Approximate Weight
781 lbs
Plowing Width At Full Blade Angle
83"
features

Laser-Cut Steel Reinforcing ribsArctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

Back our 12Ga Stainless Steel moldboard

6” Curved DeflectorArctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.

Quik*Link™ IV AttachmentArctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

Easily locks the blade, power angling and lift frame assembly to mounting kit assembly on vehicle using spring loaded handle.

Hot-Dipped Galvanized Steel FrameArctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

Provides added resistance to abrasion,  water and rust, making our plows virtually maintenance free.

Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SSUnique Greaseable Center hinge

That provides so much stability it eliminates the need for a quadrant

Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS1/2" x 6" High Carbon Steel Cutting edge

With top hole bolt pattern

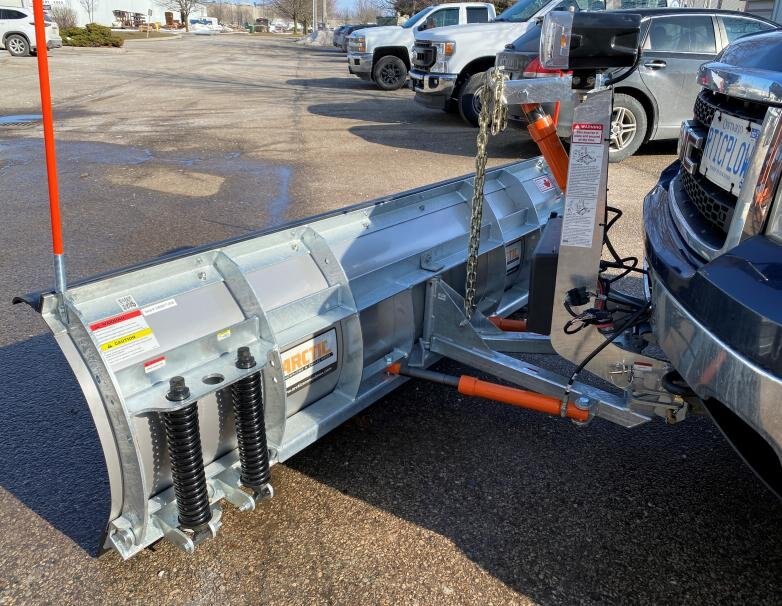

Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS4 Adjustable Compression Springs

To compensate for uneven plowing grounds

Laser Cut holes
Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SS

For optional bolt on Wing kits

Arctic Heavy Duty Trip Edge Stainless Steel Blade T96SSDouble lift chains

For Extra lift, strength and safety
