Walker Mowers R22x

Videos
Call for Price
Overview
The S18 continues to build on the Model S platform with an 18 HP engine and Walker’s patented Grass Handling System with Thru-Shaft PTO. It is faster and more powerful, and with reduced weight, the S18 is designed to be productive and efficient. Able to run 36 to 56 inch decks, the S18 is the perfect choice for residential properties, gated yards, and demanding customers.

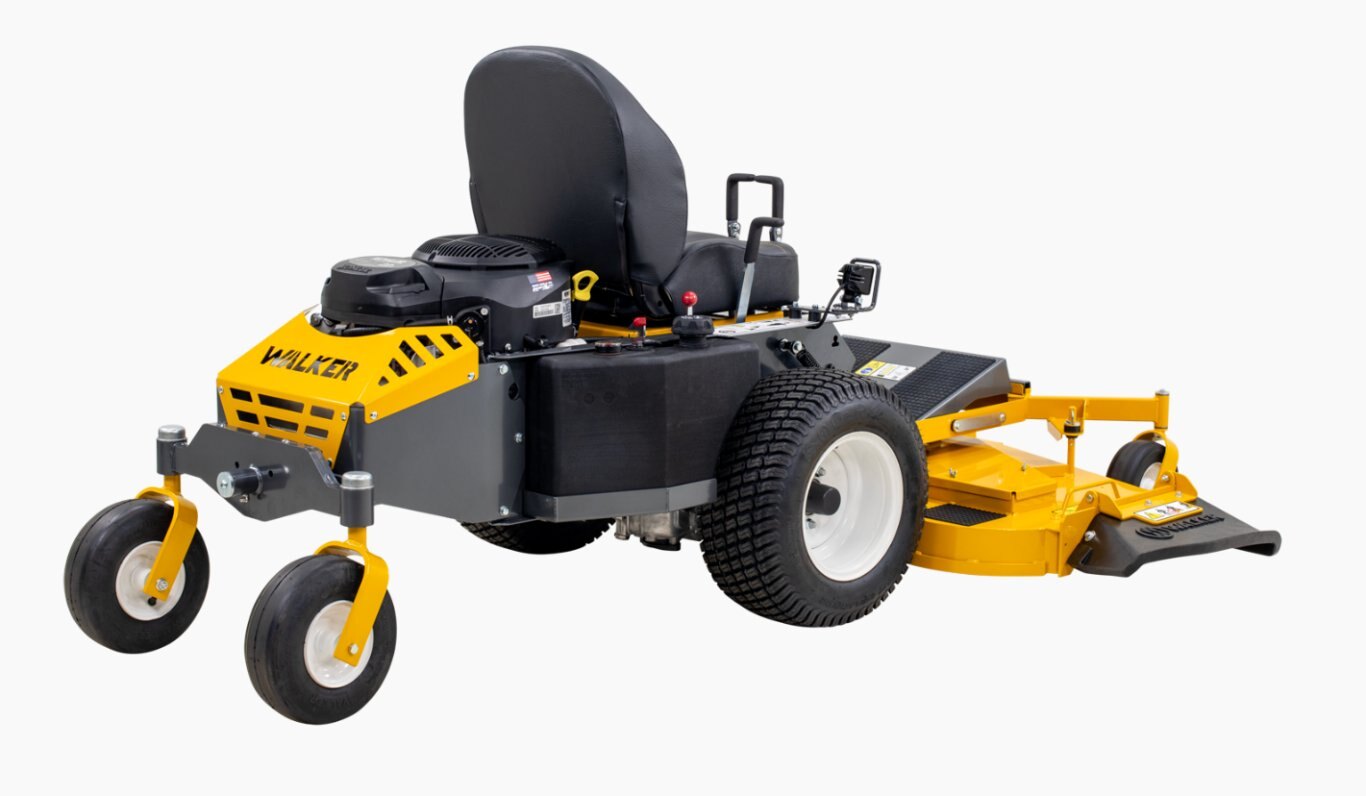

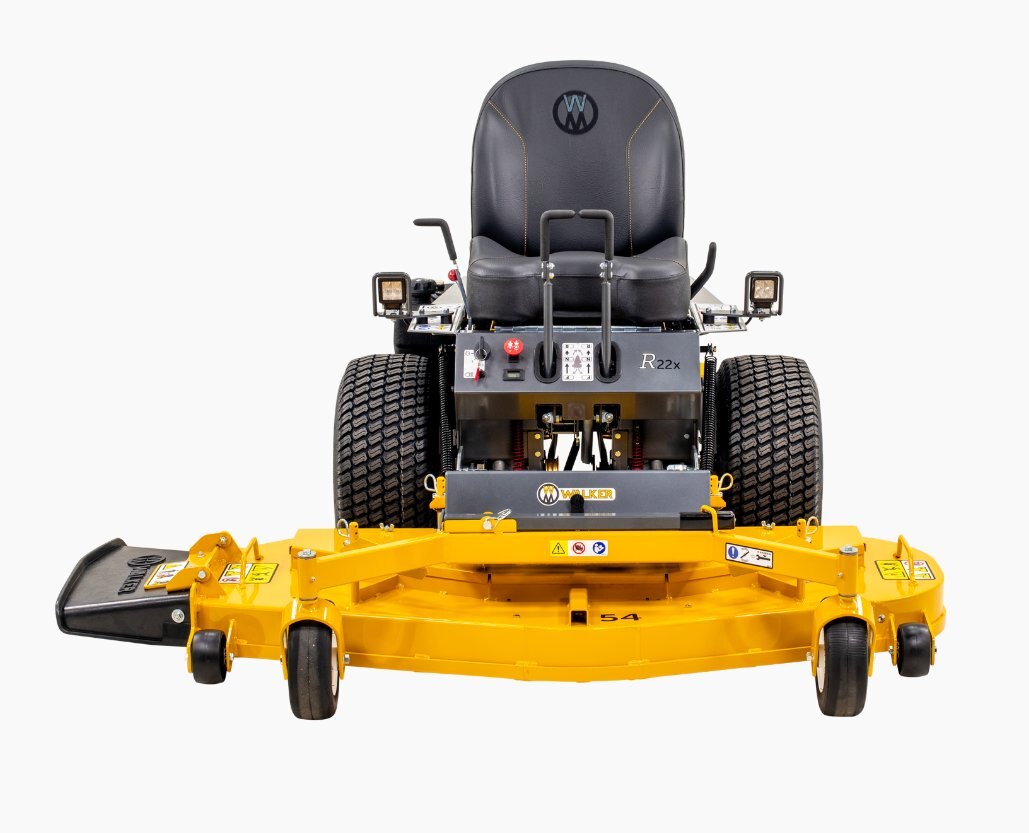

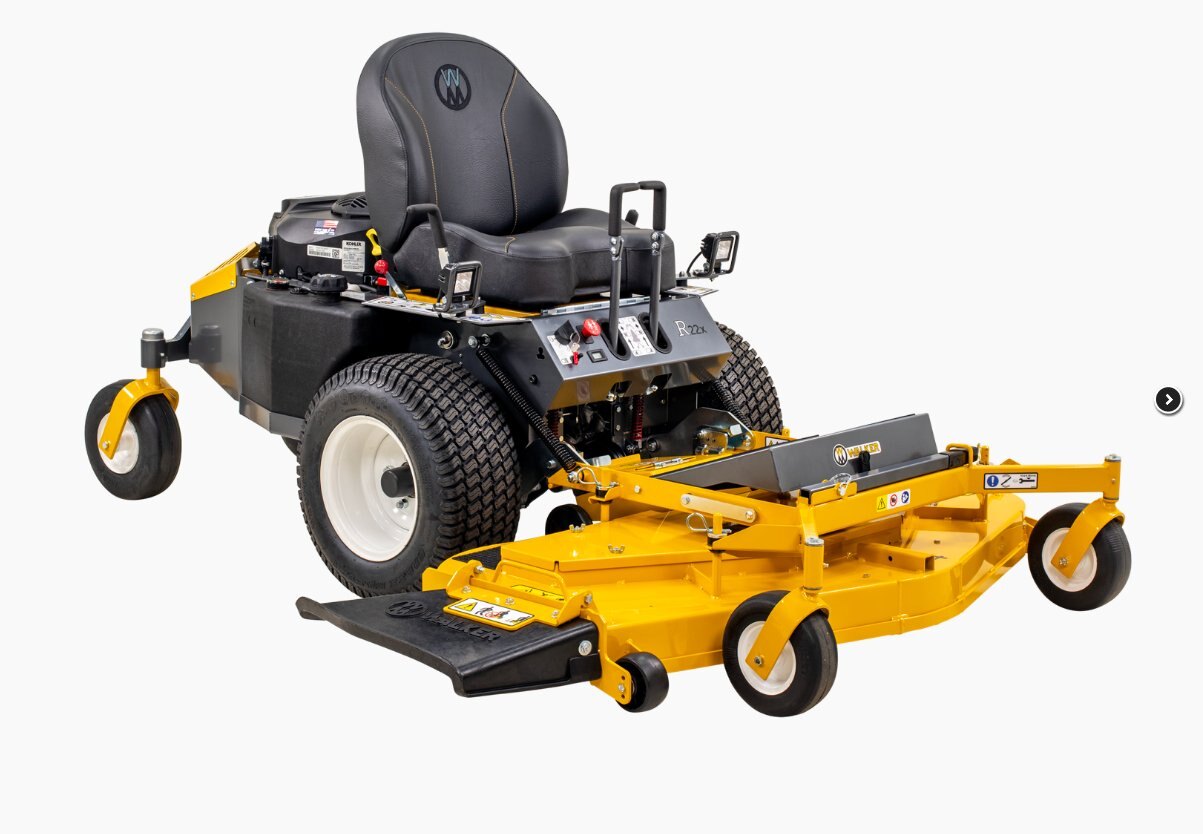

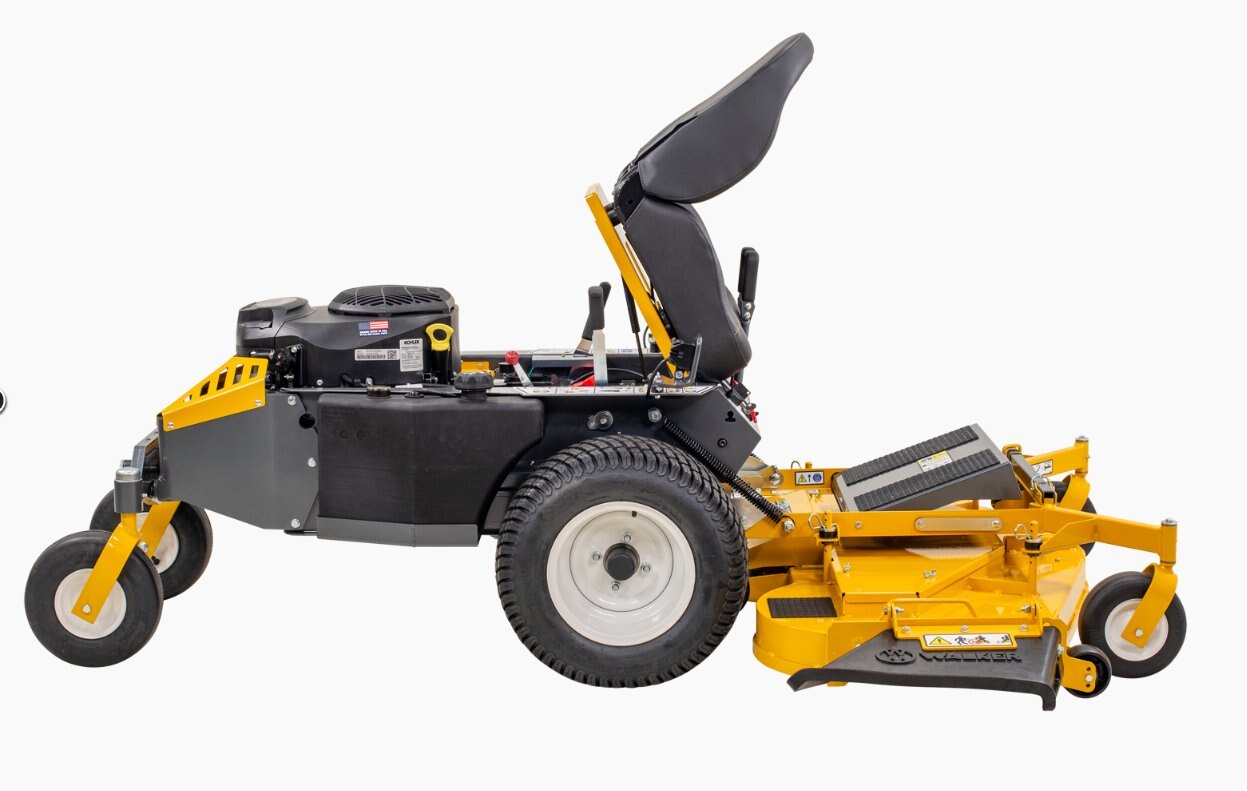

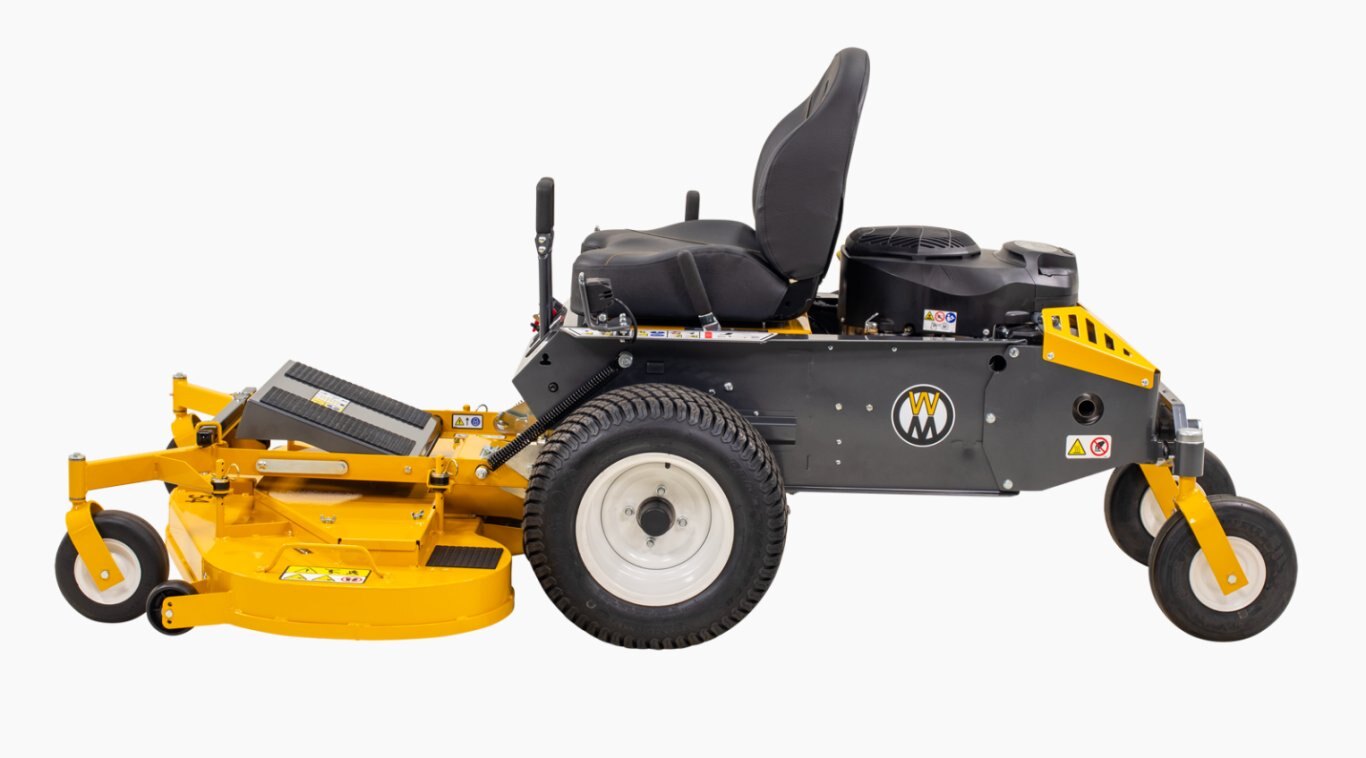

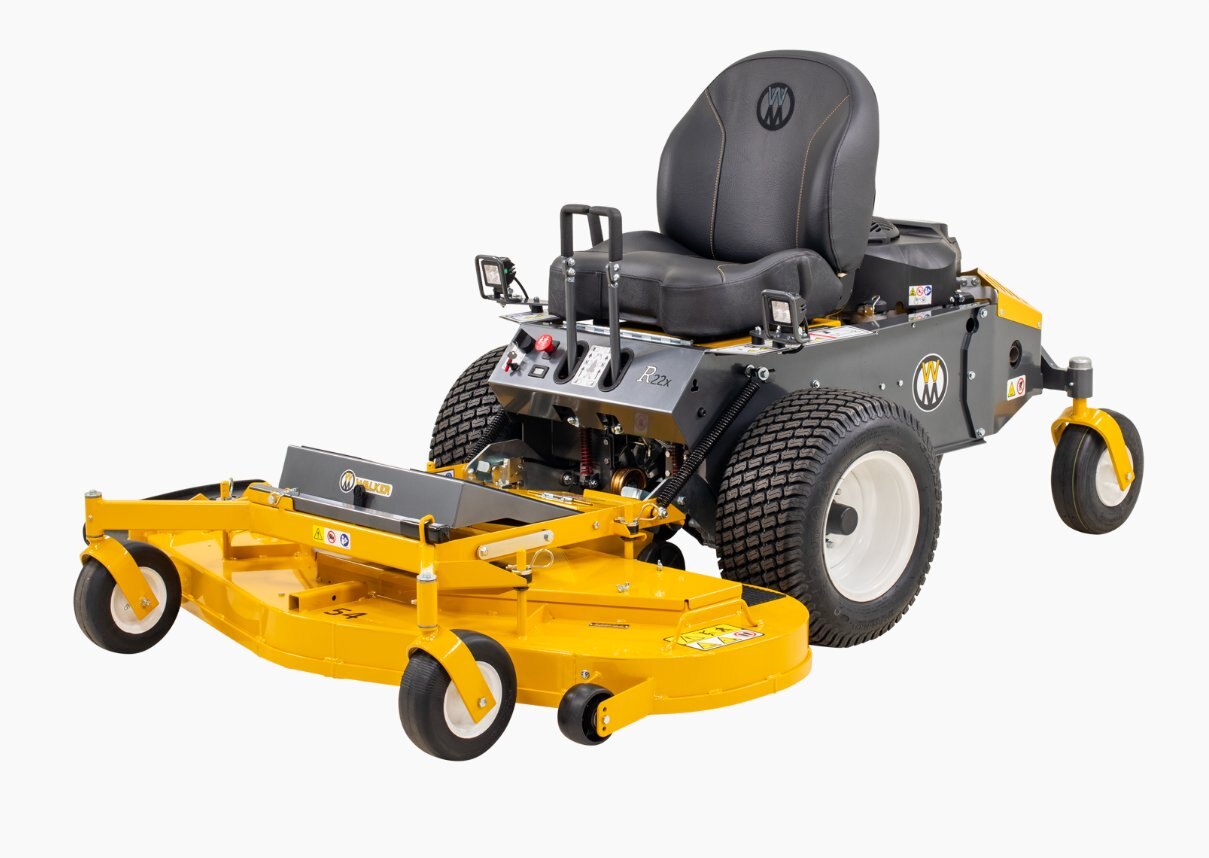

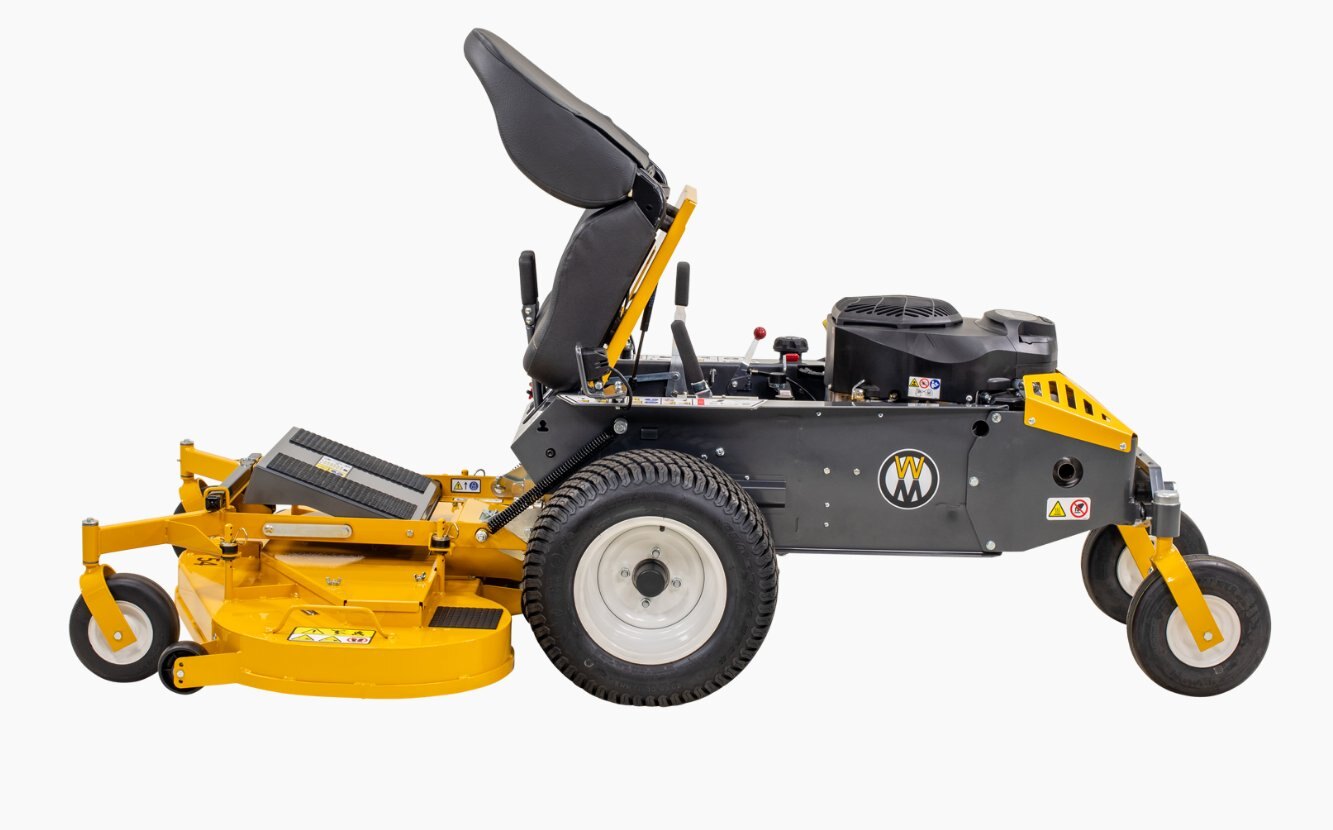

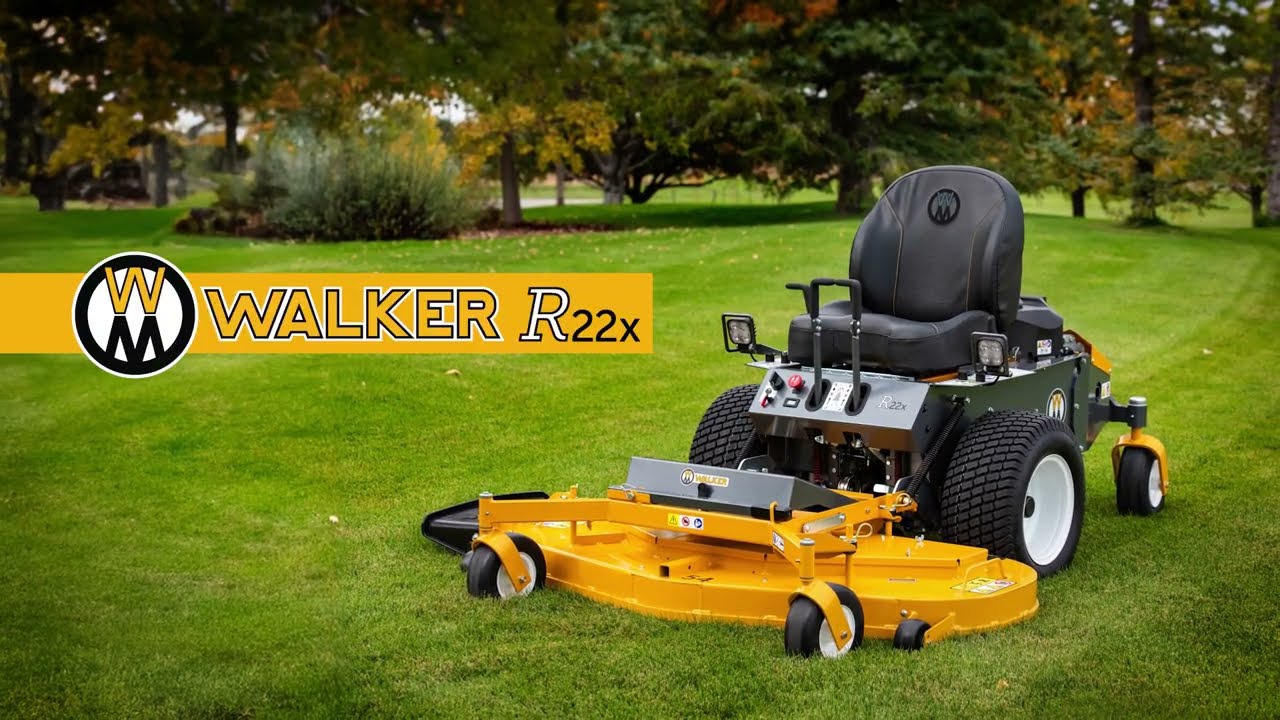

R22x Model Overview
The Model R22x offers commercial landscapers an on-ramp to the full Walker line up. It delivers the same smooth, quiet, and reliable performance operators expect, with great versatility and ease of use.

This is achieved through a combination of upgrades: commercial-grade transaxles enable use by contractors for high-demand properties; a well-cushioned comfort seat enhances operator comfort; 20-inch drive tires provide superior traction on diverse terrains, coupled with spread axle tail wheels add exceptional stability and a smooth ride; and integrated headlights ensure safe operation during low-light conditions.



Specifications
Model
R22x
Category Name
Lawn / Garden
Year
2026
Manufacturer
Walker Mowers
Type
Non-Collection
Decks
3 Discharge, 2 Mulching Kits
Power
22 HP
Engine
Kohler KT722
Key Attributes
Agile, Accessible, Compact
Standard Options
18 x 8.5-10 Turf Tire, Standard Seat
Ideal Application
Residential Properties
engine
Fuel
Gasoline (unleaded - min. 87 octane)
Model
KT722
Max Power
22 HP @ 3600 RPM
Max Torque
40.4 ft-lbs
Displacement
747 cc (45.6 cu. in.)
Governed RPM
3600
Manufacturer
Kohler
Fuel Capacity
3 gal (11.4 liter)
Cooling System
Air
electrical
Battery
12V, 300CCA
Charging Output
18 Amp DC (Regulated)
Charging System
Flywheel Alternator
transmission
Neutral
Transaxle Release by Manual Dump Valve
Steering
Hand Lever Control, Individual Wheel
Parking Brake
External Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h)
0-7 MPH (0-11 km/h)
Manufacturer/Model
Dual Independent Hydro-Gear ZT-2200 Integrated Transaxles
Forward Speed Control
Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
blade drive
Blade Drive Clutch And Brake
Electric Clutch with Brake [Stops Blades within Five (5) Seconds of Disengagement]
grass handling
Note
An optional Accelerator® Grass Catcher is available for collection mowing
Grass Catcher Capacity
31 Gal / 3.3 Bu / 116 L
deck
Cutting Height
1.5 to 4 in. (4 to 10 cm)
Deck Suspension
Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Recommended Cut Width
Side Discharge: 42 to 54 in. (107 to 137 cm), Mulch: 42 to 48 in. (107 to 122 cm)
tires
Drive
20 x 8-10 (Pneumatic 4-Ply, Low Profile)
Tailwheel
11 x 4.00-5 (Pneumatic 6-Ply)
Deck Caster
8 x 3.00-4 (Semi-Pneumatic)
size and weight

LENGTH

  • Tractor with S48 deck: 92.25 in (234 cm)

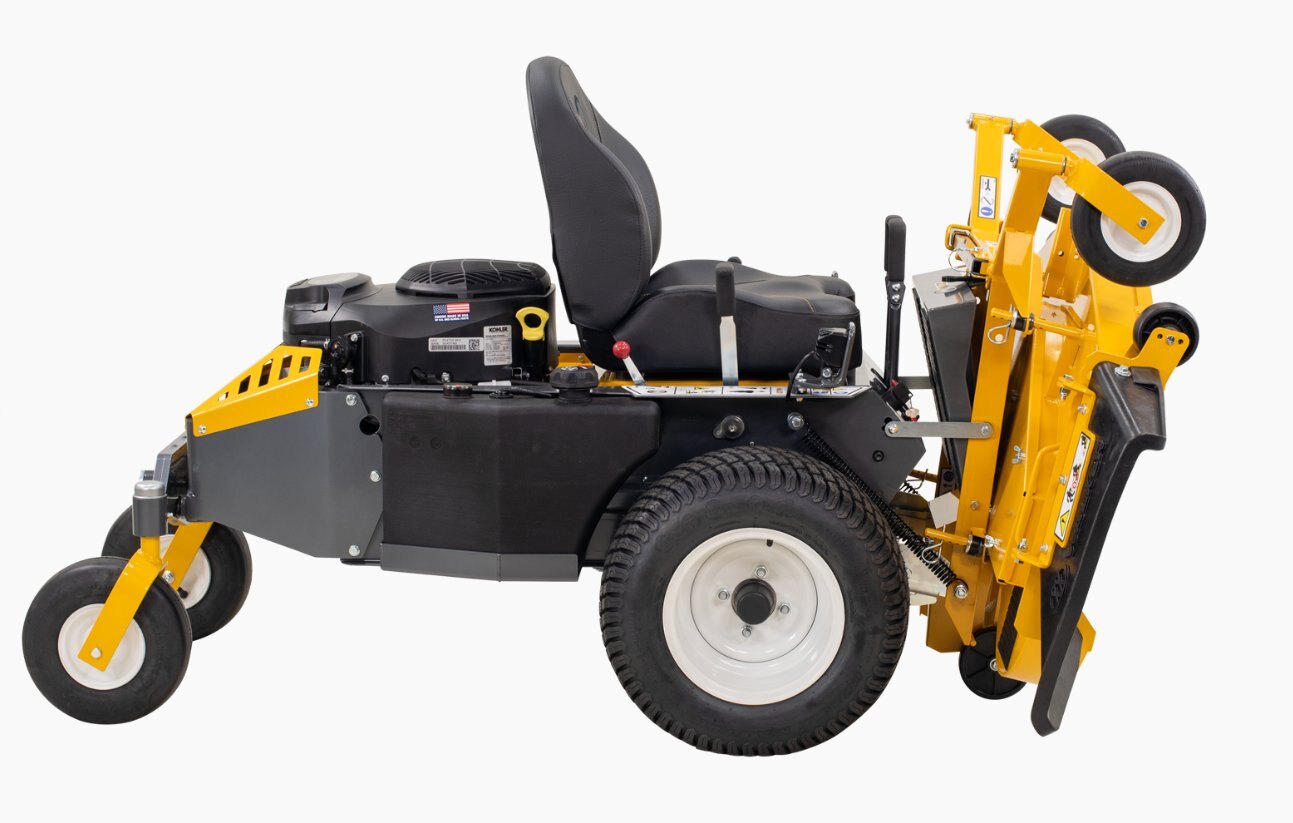

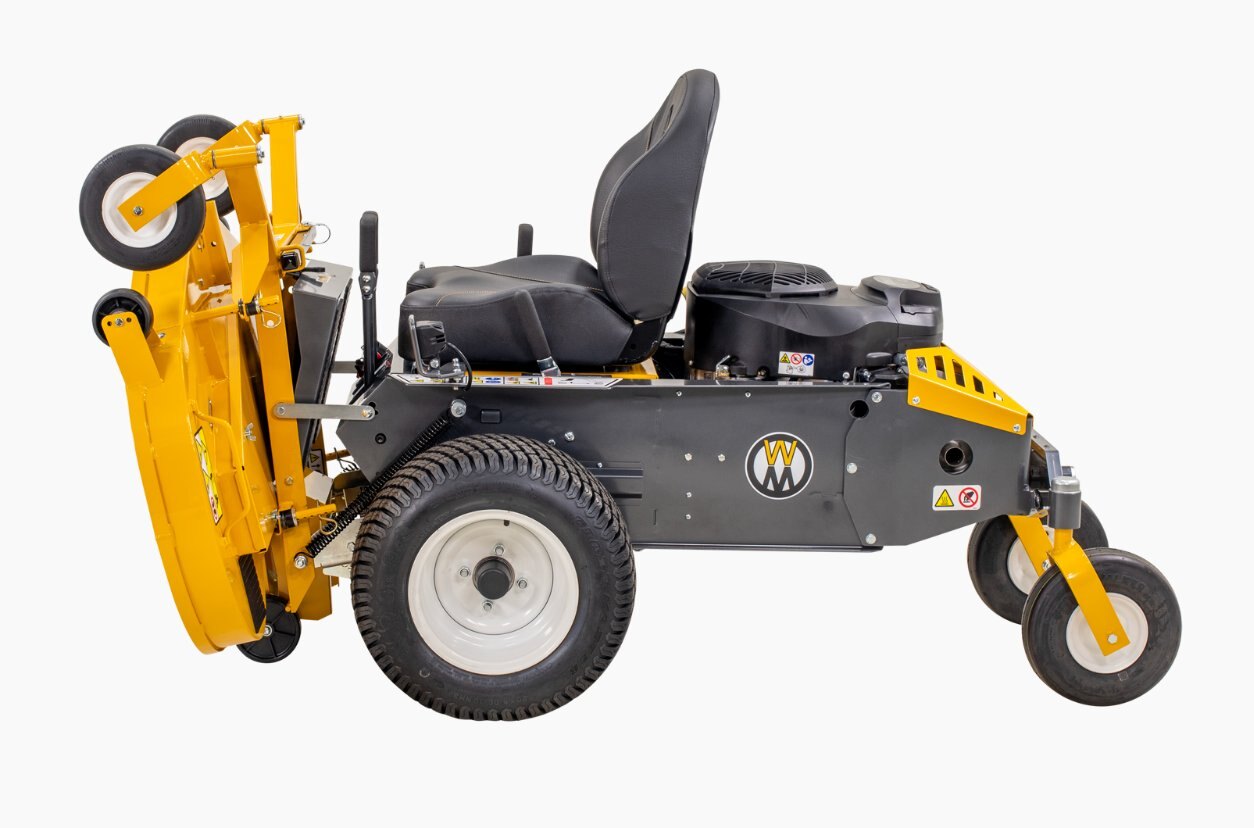

  • Tractor with deck tilted: 70 in (178 cm) with S54
  • Tractor wheel base: 39 in (99 cm)

WIDTH

  • Tractor Only (Outside Tire): 40 in (102 cm)
  • Tractor with S48 deck: 49 in (124.5 cm)

HEIGHT

  • Tractor: 42.25 in (107 cm)

WEIGHT

  • Tractor Only: 482 lbs (218 kg)
  • Tractor with S48 deck: 680 lbs (308 kg)
